SaunaLife Model G2 Outdoor Sauna DIY Kit

SaunaLife G2 4-Person Outdoor Sauna Cabin Kit

Build a solid-wood sauna in your backyard with the SaunaLife G2 Cabin Kit. This kit comes with all the materials needed to construct a traditional sauna cabin.

The walls are formed from thick, interlocking spruce planks that offer excellent heat management for steamy sessions all year long. The light finish ages well in the sun, keeping a striking natural look season after season. A tempered glass door adds a touch of elegance to the cabin design and clear views while you relax.

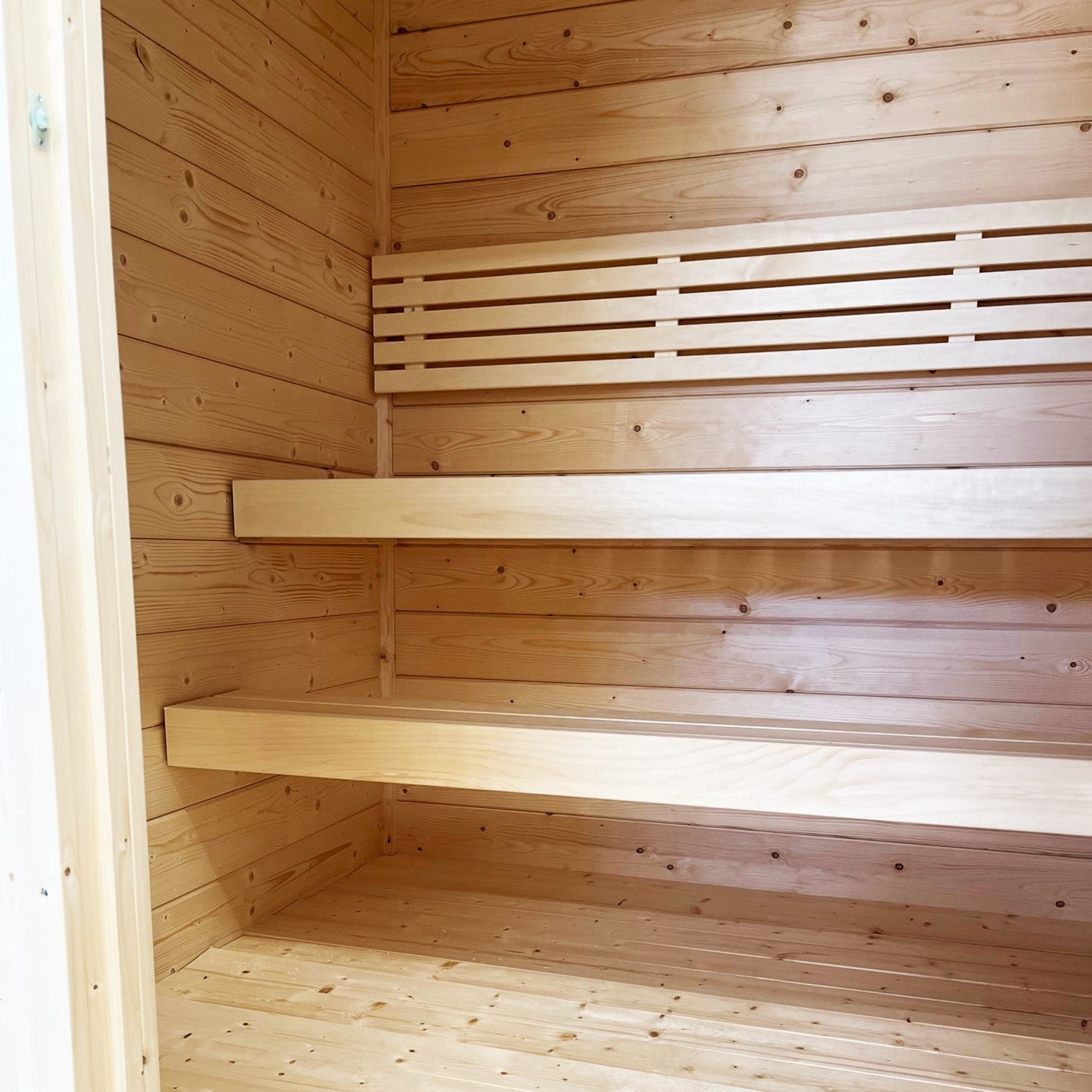

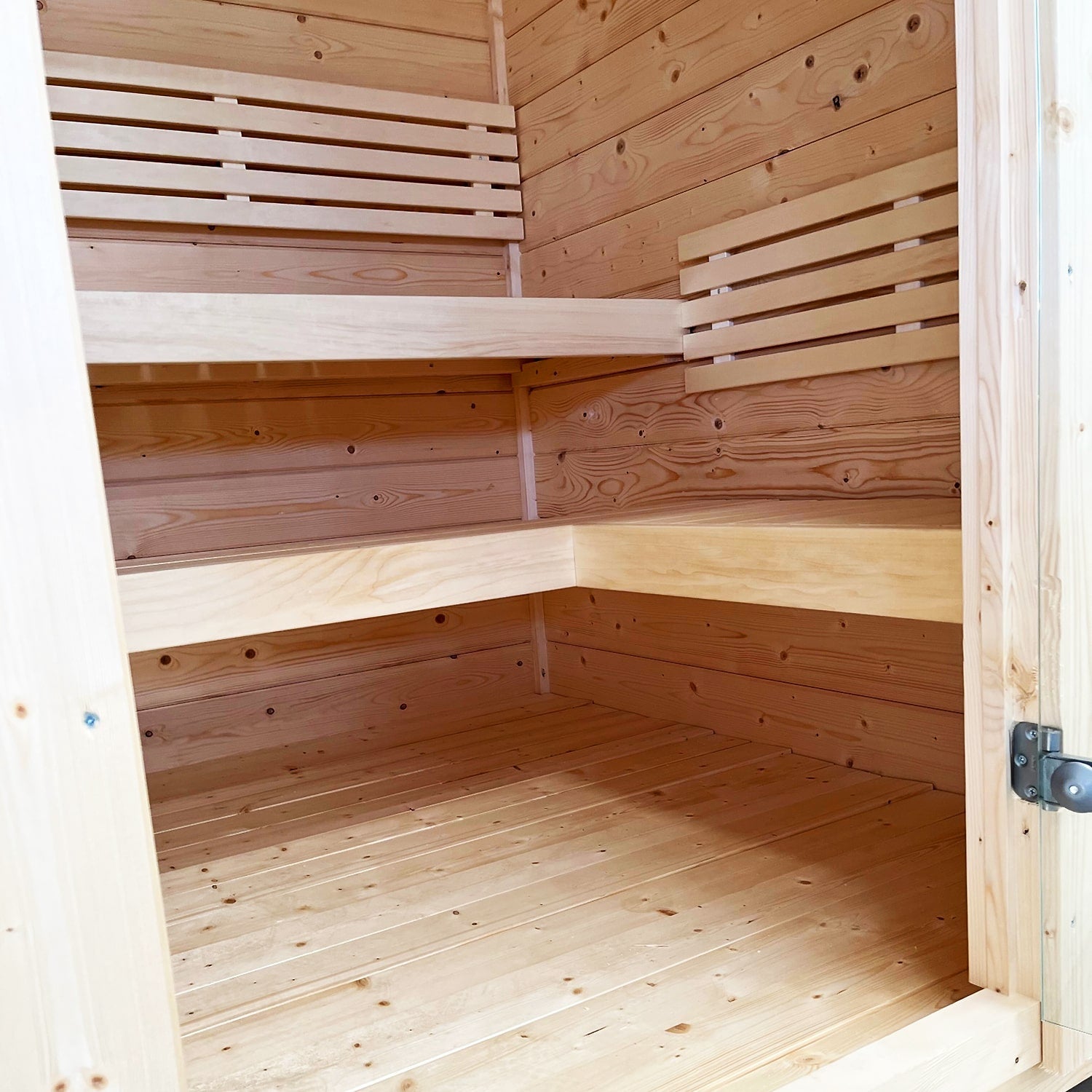

Smooth Aspen benches and backrests let you sink into each session with sturdy support and a soft skin-feel. These benches comfortably seat up to four people at a time.

The sloped roof is paired with an EPDM rubber membrane to help direct rain and melting snow away from the door. This helps keep your cabin clean and won’t drip freezing water down your back when it’s time to go inside.

This kit is complete with gravity-based ventilation and a dimmable LED light system to create comfortable sessions exactly the way you like them.

What’s Included

G2 Cabin Outdoor Sauna Kit Contents

• Interlocking Nordic Spruce planks (1.65” thick)
• Grade-A Aspen benches (1.1” thick bench tops, no knots)
• Grade-A Aspen backrest (no knots)
• Clear tempered glass door (8mm thick)
• Ventilation system
• Heater safety rail
• Slanted roof with self-adhesive waterproofing

LED Light System Contents

• White LED light (1)
• Wireless handheld remote & mounting cradle
  • Includes Wi-Fi, app-based operation
• 90W power supply
• Driver
• 30’ light cable
• Installation instructions

ATTENTION: This kit does NOT include a Sauna Heater Package. Check out the Heater Packages under Suitable Sauna Heaters to complete your build.

Assembly

Assembly & Installation

The SaunaLife G2 Cabin requires assembly and finishing. In addition to this kit, you will need:

• A stable, level foundation - The sauna must sit on a level, stable foundation.
• Heater Package - Pick up a complete heater kit to finish your build. This sauna can support electric heaters (not included).
• Certified Electrician - You will need a certified electrician to help with the wiring for the sauna heater, controller, lighting, and any other wired accessories.
• Building Permits - Check with your local building department for any building permits and safety requirements needed before construction.

Read through all Installation Manuals, Diagrams, and Care Instructions before assembly.

Heater Compatibility

Heater Compatibility

The SaunaLife G2 Outdoor Sauna Cabin is compatible with the following heaters:

Harvia

• Harvia Spirit SP60E Electric Sauna Heater Package

HUUM

• HUUM DROP 6kW Electric Sauna Heater Package

Specifications

SaunaLife G2 Cabin Specs

Model	MODEL G2
Capacity	4 persons
Heater Compatibility	Electric: Yes Wood-Burning: Yes
Wall Material	Nordic Spruce
Glass Type	8mm Clear Tempered Glass
Roof Type	Nordic Spruce w/ EPDM Membrane
Interior Dimensions	5.6’ W x 4.8’ D x 6.7’ H (Front) / 6.3’ (Back)
Interior Volume	176.6 ft3
Bench Dimensions	5.6’ W x 1.8’ D
Glass Door Dimensions	2.3’ W x 5.6’ H
Exterior Dimensions	6.9’ W x 6.3’ D x 7.2’ H (Front) / 6.7’ H (Back)
Shipping Dimensions	7.4’ W x 3.7’ D x 2.7’ H
Shipping Weight	1200 lbs

SaunaLife G2 Light Kit Specs

Model	G2 Light Kit
Operating Voltage	24VDC
Wattage	18.69W
Connection Type	IP67 Twist Lock 2 Pin
IP Rating	IP67
Certification	cETLus/SGS/TUV
Power Supply Input Voltage	120VAC
Power Supply Output Voltage	24VDC
Power Supply Rated Power	90W
Power Supply Certification	UL, CE, FCC

Manuals

Manuals

• G2 Cabin Sauna Construction & Installation Manual
• G2 Cabin Sauna LED Light System Manual
• G2 Cabin Sauna Diagram
• G2 Cabin Sauna Care Guide
• G2 Cabin Sauna Warranty

Shipping

Shipping

• The SaunaLife G2 Sauna has a flat shipping rate of $950 for deliveries within the 48 contiguous states.
• These Saunas ship directly from our Illinois warehouse as LTL freight.
• Shipping times vary depending on inventory levels and delivery location. If there are any delays in shipping, we will reach out to you directly with the new projected arrival date.
• For a more specific timeframe, contact us.
  • (725) 777-5484
• We offer express shipping options, reach out to us for a quote.

ATTENTION: Shipping and delivery times may increase based on seasons and holidays.

Cancellations & Returns

Cancellations

We will issue a 100% refund on orders canceled within 4 business days. If an order is canceled after this 4-day grace period ends, there will be a 3% cancellation fee. Please reach out to our support team if you need to cancel your order after it has shipped.

Returns

Our saunas include a 30-day return policy.

You can return this product if:

• You initiate your return within 30 days of product delivery date.
• The product is unused and in its original packaging.
• Installation has not been attempted.

If these requirements are met, your return will be accepted. However, you will be responsible for the return shipping cost and a 20% restocking fee. After we receive the return and it has been inspected at our warehouse, we will refund your original payment method in accordance with the policy listed above.
