SaunaLife ERGO E7 Barrel Sauna Kit 4-Person

SaunaLife ERGO E7 Barrel 4-Person Outdoor Sauna Kit

Create a defined space for quiet moments of recovery and relaxation with the SaunaLife E7 Barrel Sauna Kit. This all-in-one solution comes with the necessary materials to build a barrel sauna cabin from the ground up.

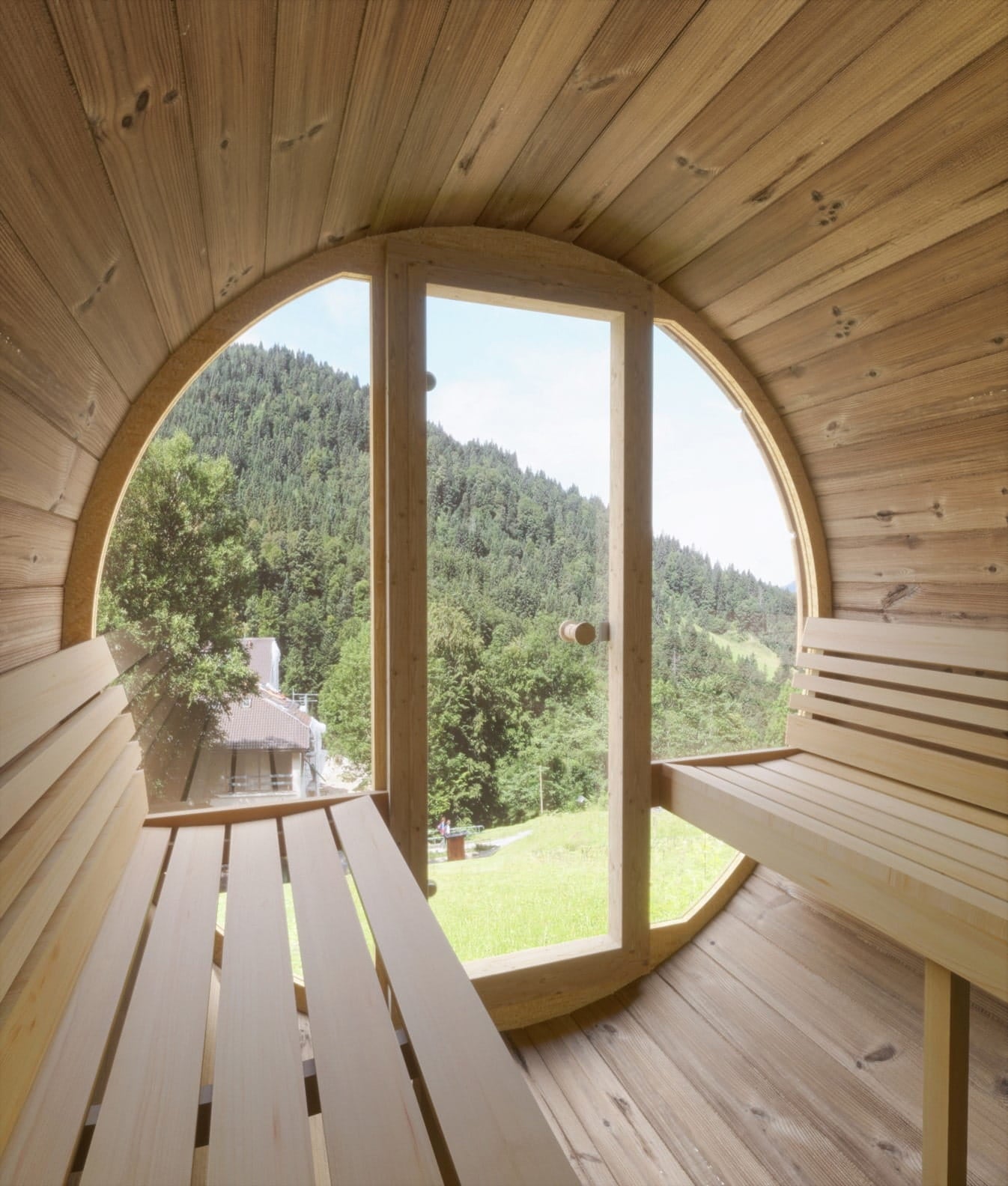

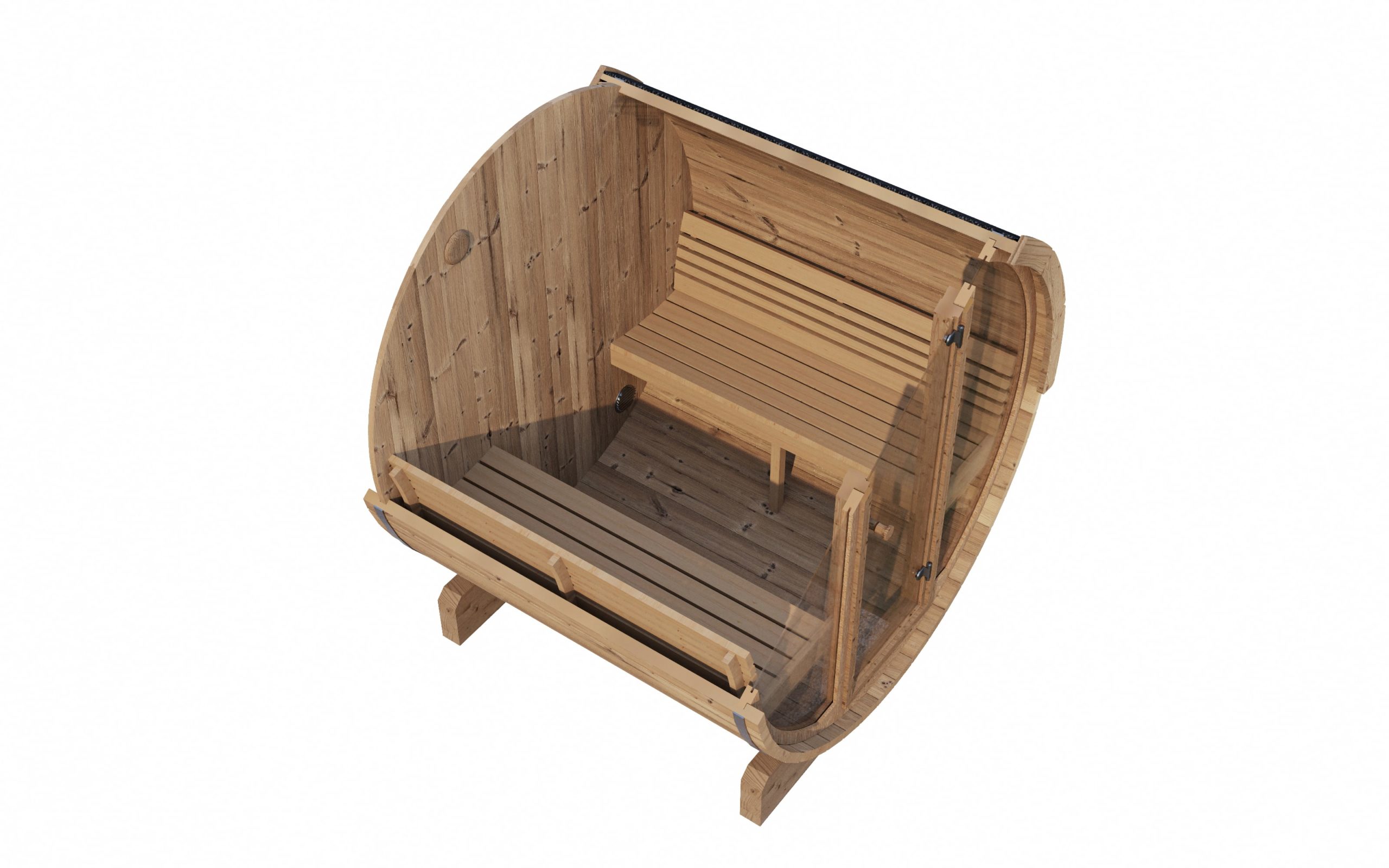

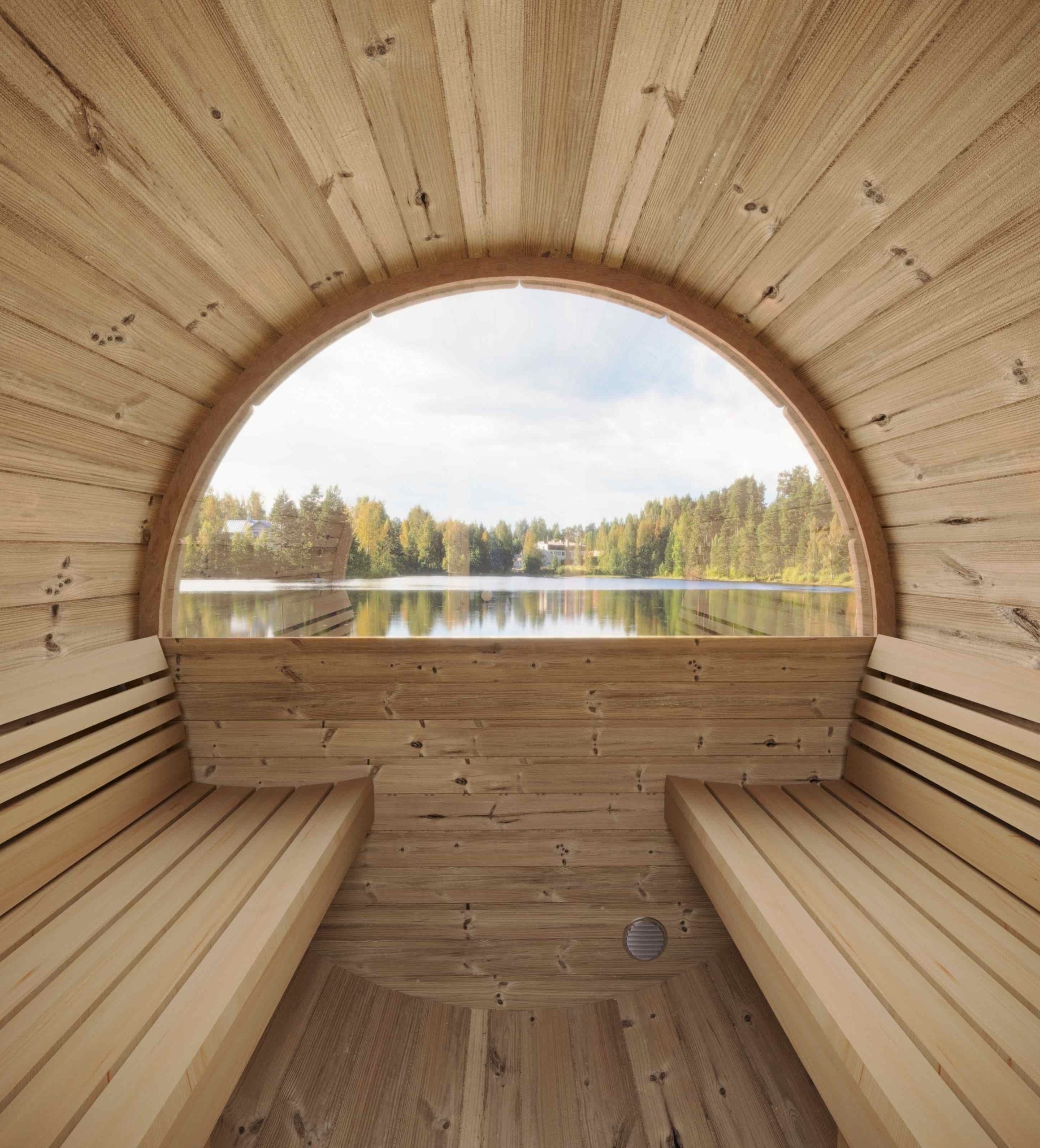

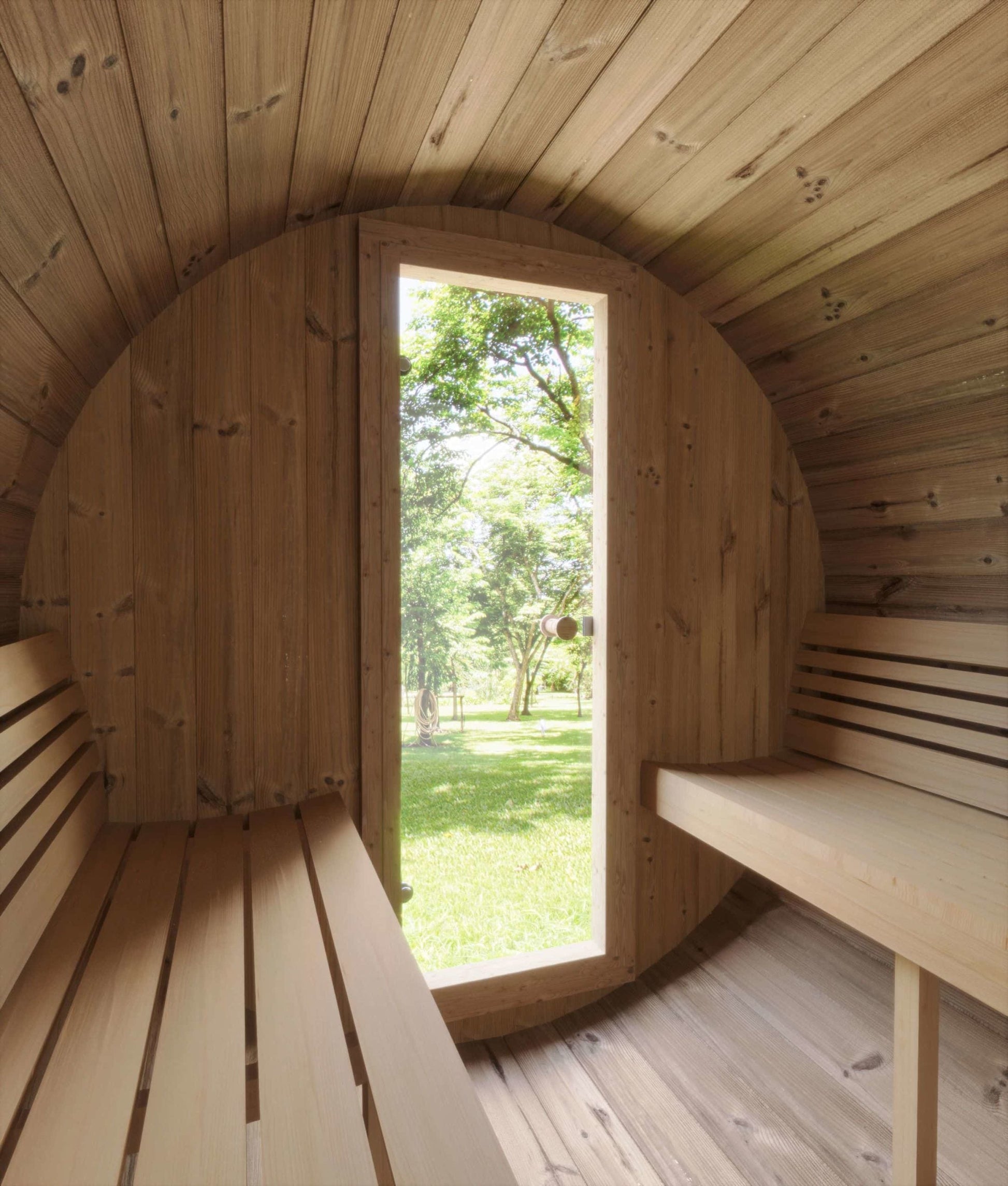

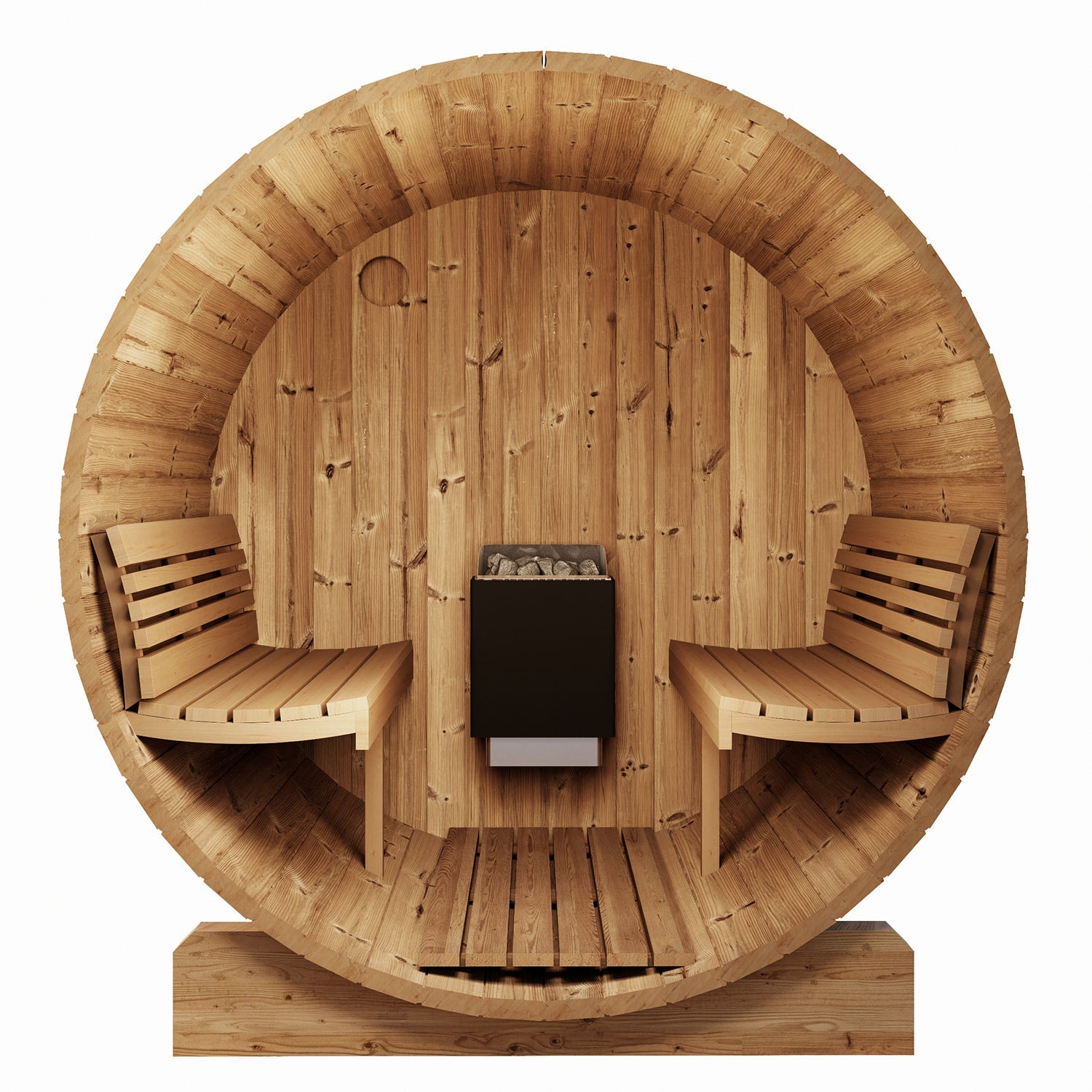

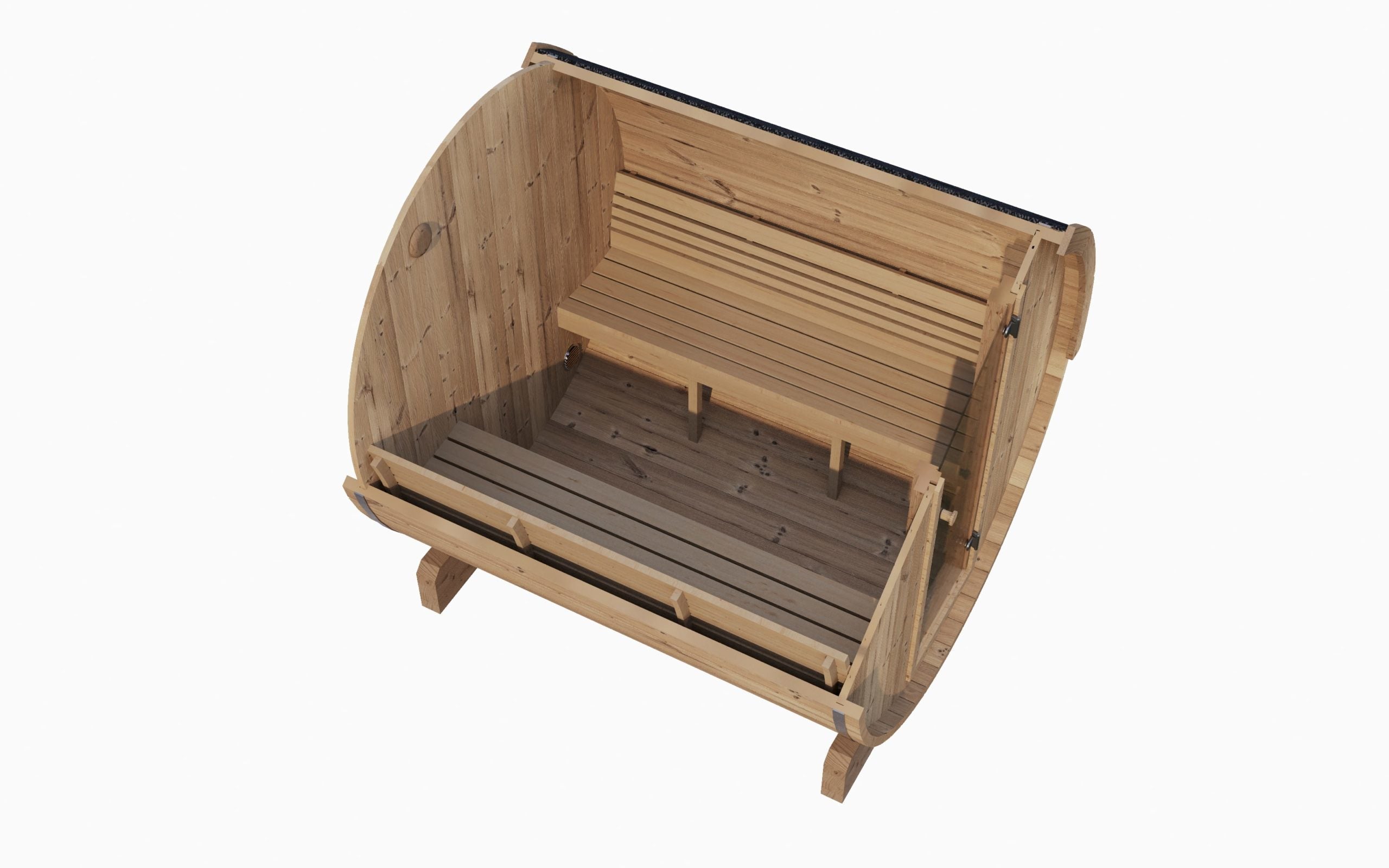

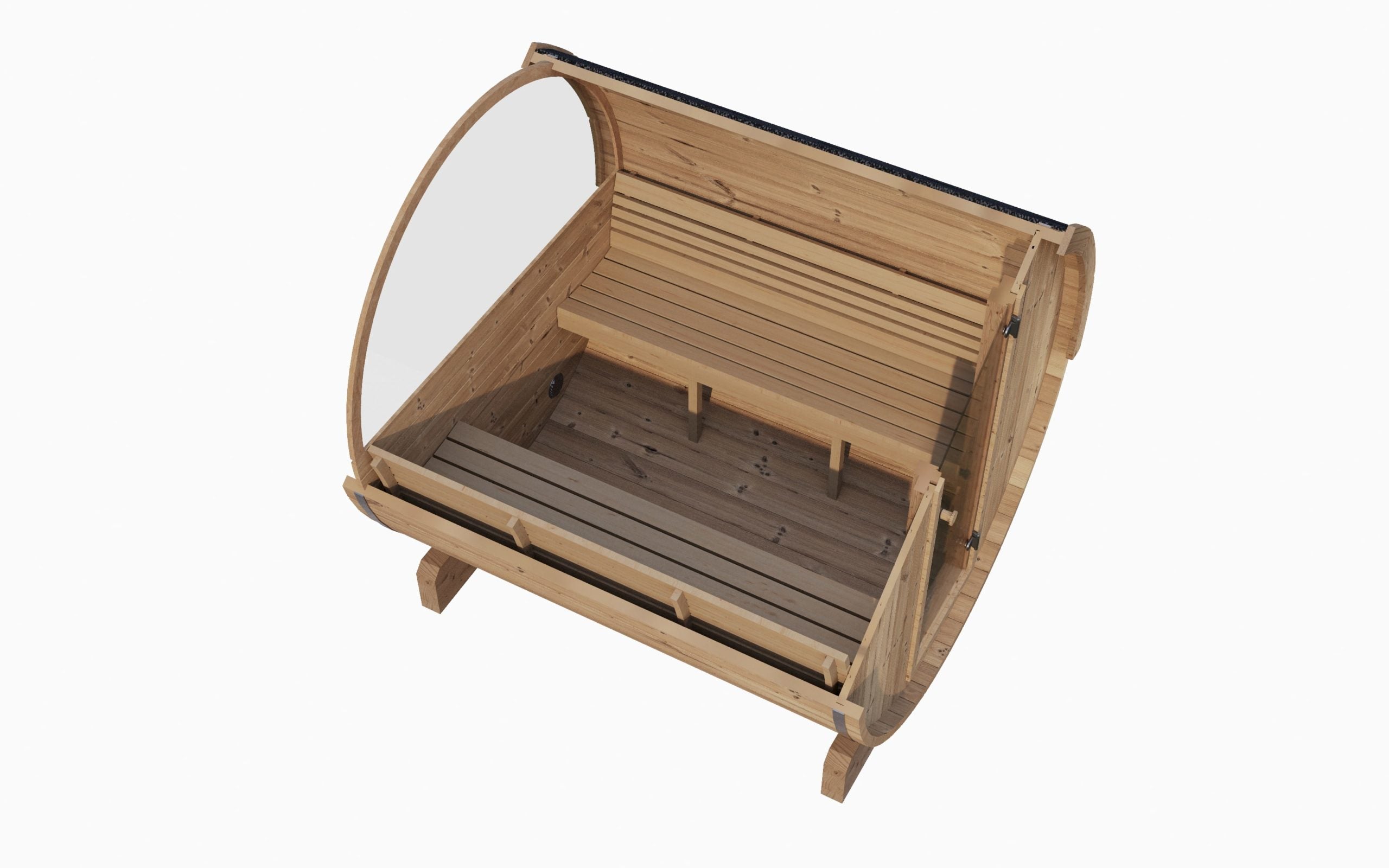

The E7’s spacious design offers a full 6’5” interior height, providing plenty of headroom for tall bathers. The double I-bench layout combines arched backrests with contoured seating to comfortably support up to four people at a time. These seating elements are made from silky ThermoAspen that’s soft on the skin for top-tier comfort.

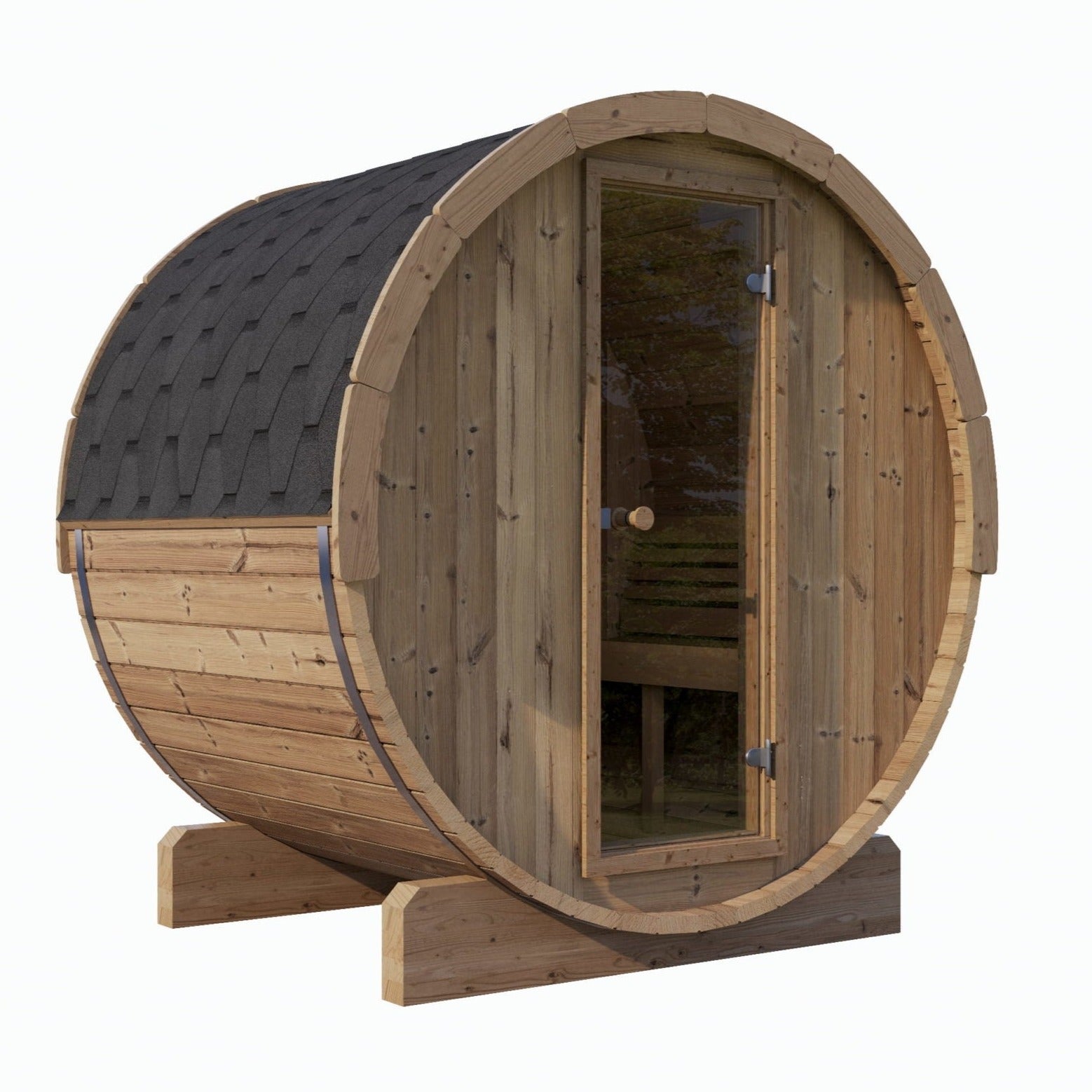

A set of interlocking ThermoSpruce planks give the sauna its shape, using a tongue-and-groove design for simple assembly. This material offers exceptional heat management, helping create and contain the steamy sauna environment for remarkable heat and recovery. The wood’s dark tone is paired with a bronze tempered glass door and black shingle roof. Together, these pieces create a cohesive style that’s both rich and rustic.

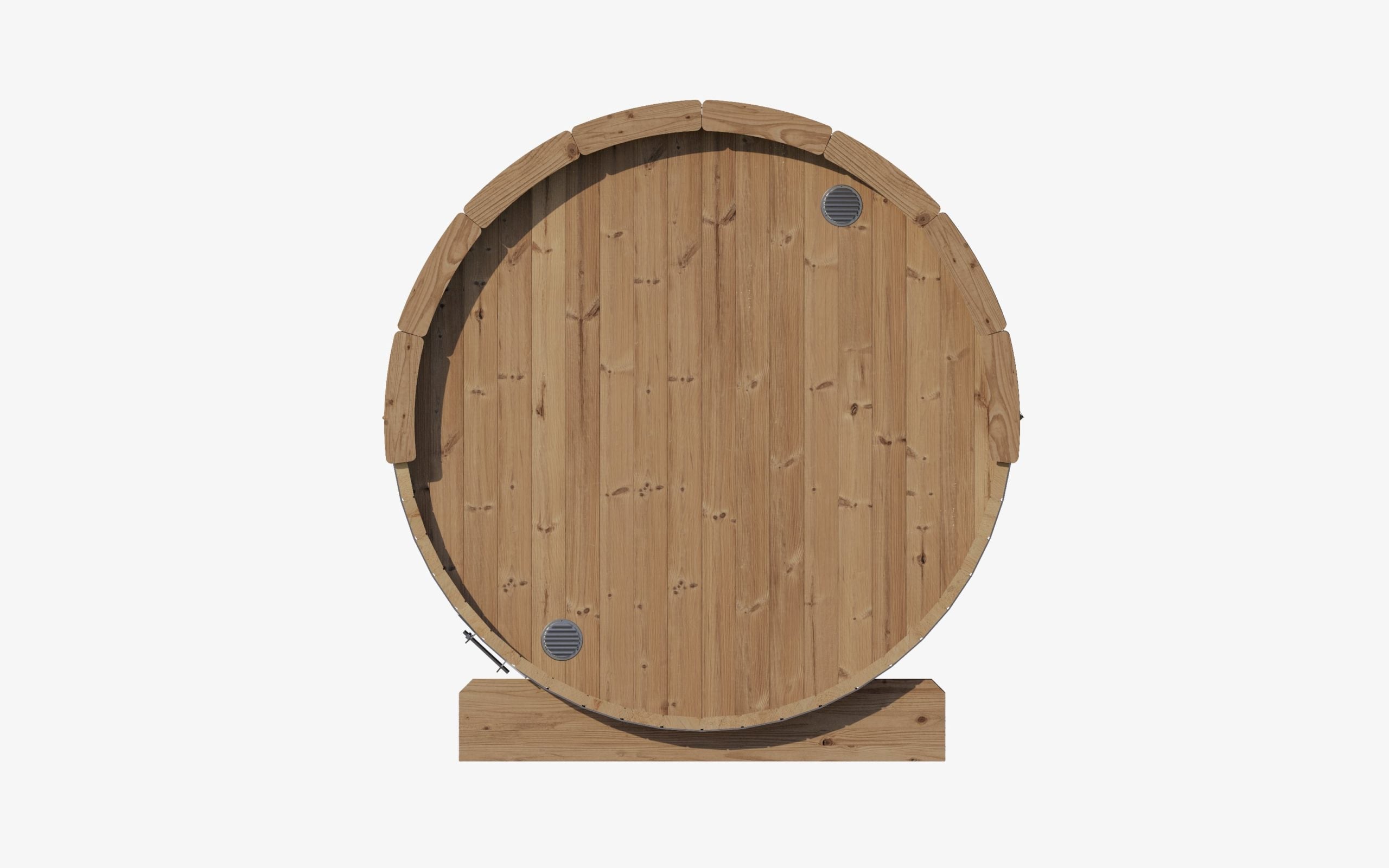

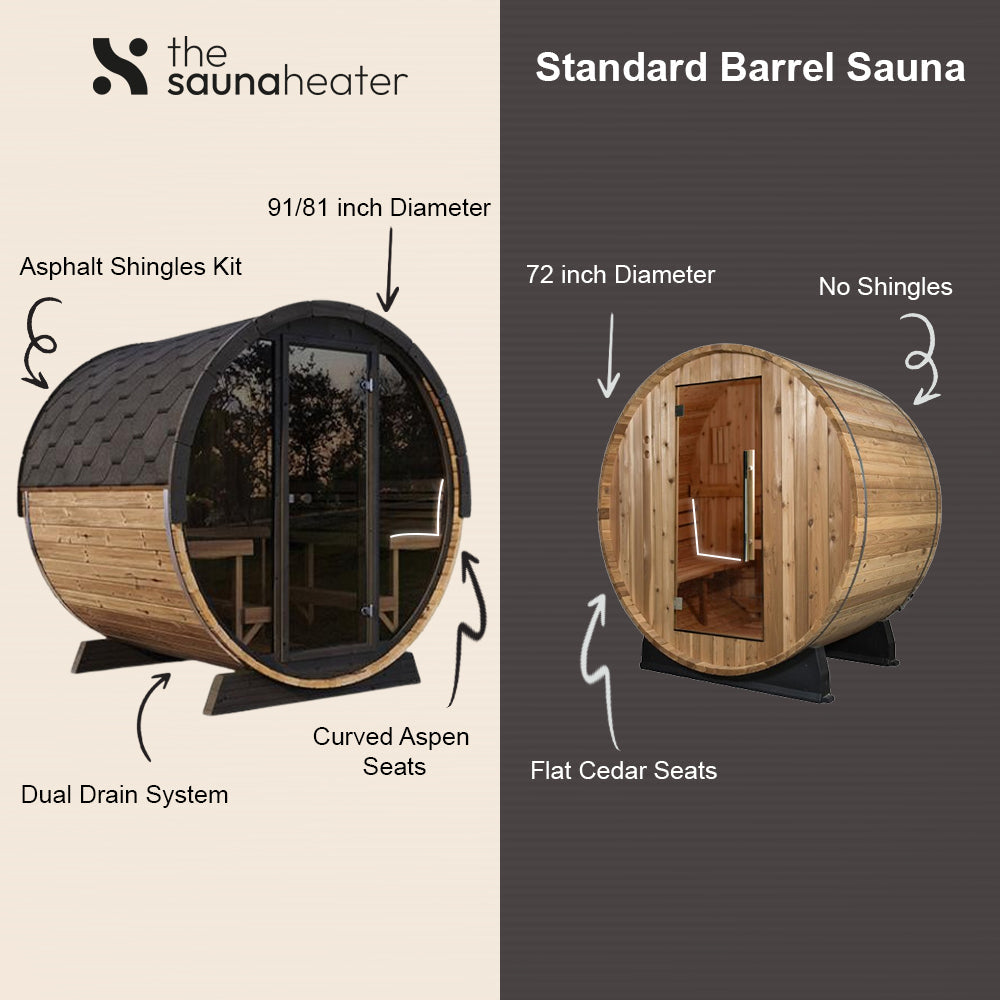

The built-in ventilation system produces a steady flow of fresh air, using a gravity-based design to promote long and comfortable sessions. They also help the sauna dry after the session ends. These vents are supported by a pair of dual floor drains that give excess liquid from water-pouring and mid-session cold plunges an escape route.

The cabin interior is complete with a set of dimmable LED lights that allow you to find the perfect ambient glow to support deep relaxation.

ATTENTION: This kit does NOT include a Sauna Heater Package. You can find these items in the Suitable Sauna Heaters menu above.

Assembly

Assembly & Installation

The SaunaLife E7 Cube Sauna requires assembly and finishing. In addition to this kit, you will need:

• A stable, level foundation - The sauna must sit on a level, stable foundation.
• Heater Package - Pick up a complete heater kit to finish your build. This sauna can support electric heaters (not included).
• Certified Electrician - You will need a certified electrician to help with the wiring for the sauna heater, controller, lighting, and any other wired accessories.
• Building Permits - Check with your local building department for any building permits and safety requirements needed before construction.

Read through all Installation Manuals, Diagrams, and Care Instructions before assembly.

What’s Included

E7 Barrel Outdoor Sauna Kit Contents

• Full-Length Thermo-Spruce Staves (1.65” Thick)
• Benches of Thermo-Aspen (1.1” Bench Tops, No Knots)
• Backrest of Thermo-Aspen (1.1” Rests, No Knots)
• Tempered Bronze Glass Door
• Stainless Steel Barrel Bands
• Black Roof Shingle Kit
• Spruce Cradles
• Spruce Fascia Boards
• Air Intake and Exhaust Vents
• Extra Staves (2)
• Fastener Kit Paraffin Oil, 16.9 oz (500 ml)
• Installation Instructions

LED Light System Contents

• White LED Lights (2)

• Wireless Handheld Remote and Mounting Cradle
• Built-in WiFi for app-based control
• 90W Power Supply
• Driver
• 30’ Light Cable
• Mounting Clips and Screws
• Installation Instructions

ATTENTION: This kit does NOT include a Sauna Heater Package. Check out the Heater Packages under Suitable Sauna Heaters to complete your build.

Heater Compatibility

Heater Compatibility

The SaunaLife E7 Barrel Sauna is compatible with the following sauna heaters:

HUUM Drop

• HUUM Drop 6 kW Electric Sauna Heater Package

Harvia KIP

• Harvia KIP KIP60W Electric Sauna Heater Package

Harvia Spirit

• Harvia Spirit SP60E Electric Sauna Heater Package

Specifications

SaunaLife E7 Barrel Specs

Model	SaunaLife E7 Barrel
Capacity	4 People
Heater Type Compatibility	Electric: Yes Wood-Burning: No
Interior Dimensions	5.25’ D x 6.4’ H
Interior Volume	170.5 ft3
Bench Dimensions (approx.)	5.25’ L x 1.5’ W
Bench Material	ThermoAspen
Exterior Dimensions	6.7’ W x 5.9’ L x 7.1’ H
Wall Material	ThermoSpruce
Wall Thickness	1.65”
Glass Type	8mm Bronze Tempered Glass
Glass Wall Surface Area (approx.)	1.9’ W x 5.5’ H
Roof Type	Shingle
Sauna Kit Weight	1312 lbs.

SaunaLife Light Kit Specs

Model	E7 Sauna Light Kit
Operating Voltage	24VDC
Connection Type	IP67 Twist-Lock (2-Pin)
IP Rating	IP67
Light Bar Certification	cETLus/SGS/TUV
Power Supply Input Voltage	120V AC
Power Supply Output Voltage	24V DC
Power Supply Rated Power	90W
Power Supply Certification	UL, CE, FCC

Manuals

Manuals

• E7 Barrel Sauna Construction & Installation Manual
• E7 Barrel Sauna LED Light System Manual
• E7 Barrel Sauna Diagram
• E7 Barrel Sauna Care Guide
• E7 Barrel Sauna Warranty

Shipping

Shipping

• SaunaLife Saunas have a flat shipping rate of $950 for deliveries within the 48 contiguous states.
• These Saunas ship directly from our Illinois warehouse as LTL freight.
• Shipping times vary depending on inventory levels and delivery location. If there are any delays in shipping, we will reach out to you directly with the new projected arrival date.
• For a more specific timeframe, contact us.
  • (725) 777-5484
• We offer express shipping options, reach out to us for a quote.

ATTENTION: Shipping and delivery times may increase based on seasons and holidays.
