Leil Patio M Outdoor Sauna Kit

Leil Patio M 5-Person Outdoor Sauna Kit

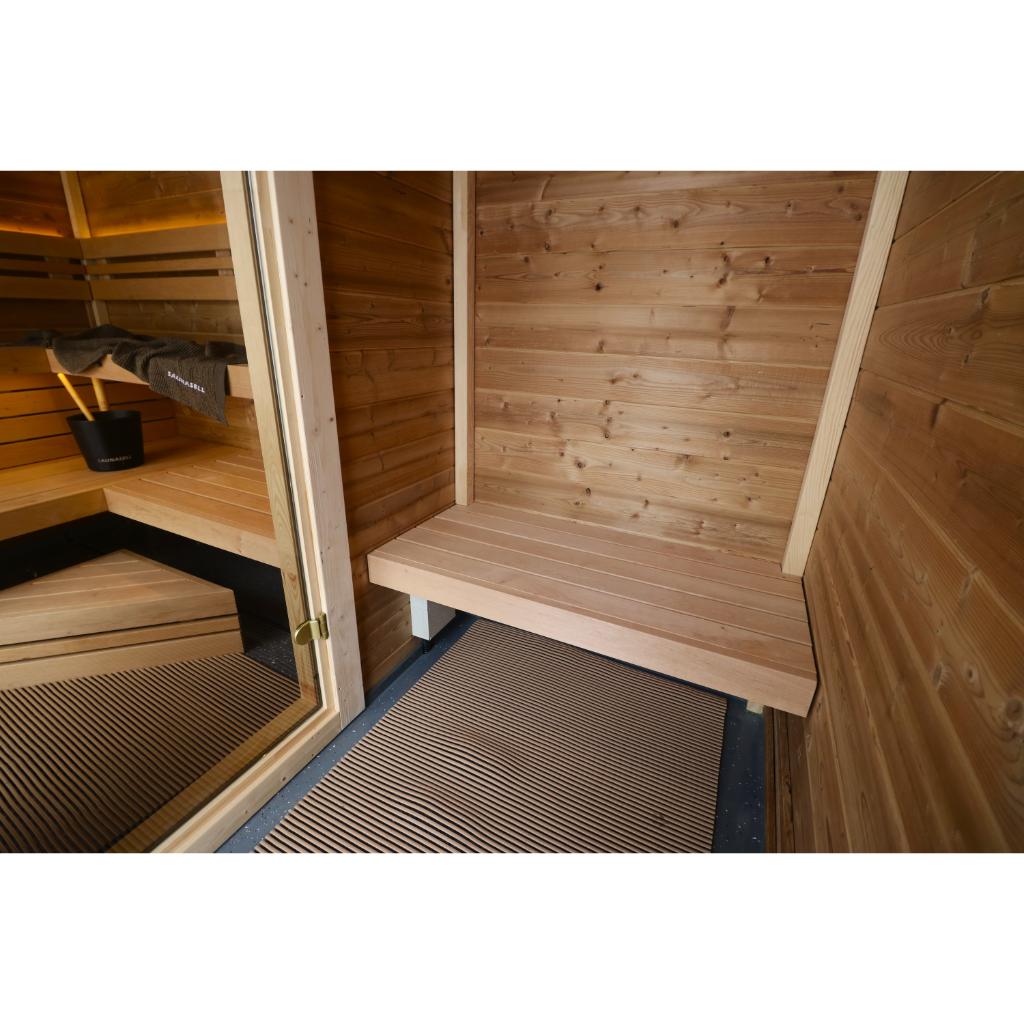

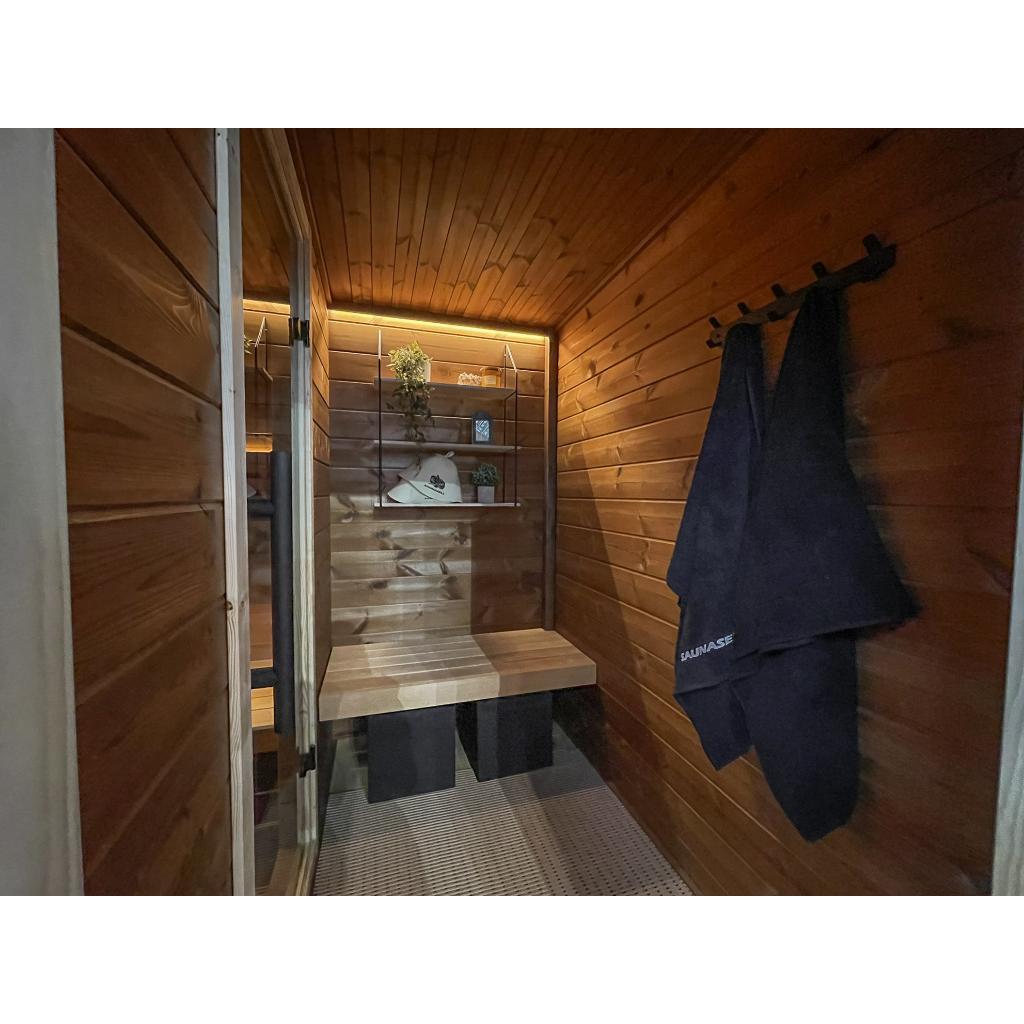

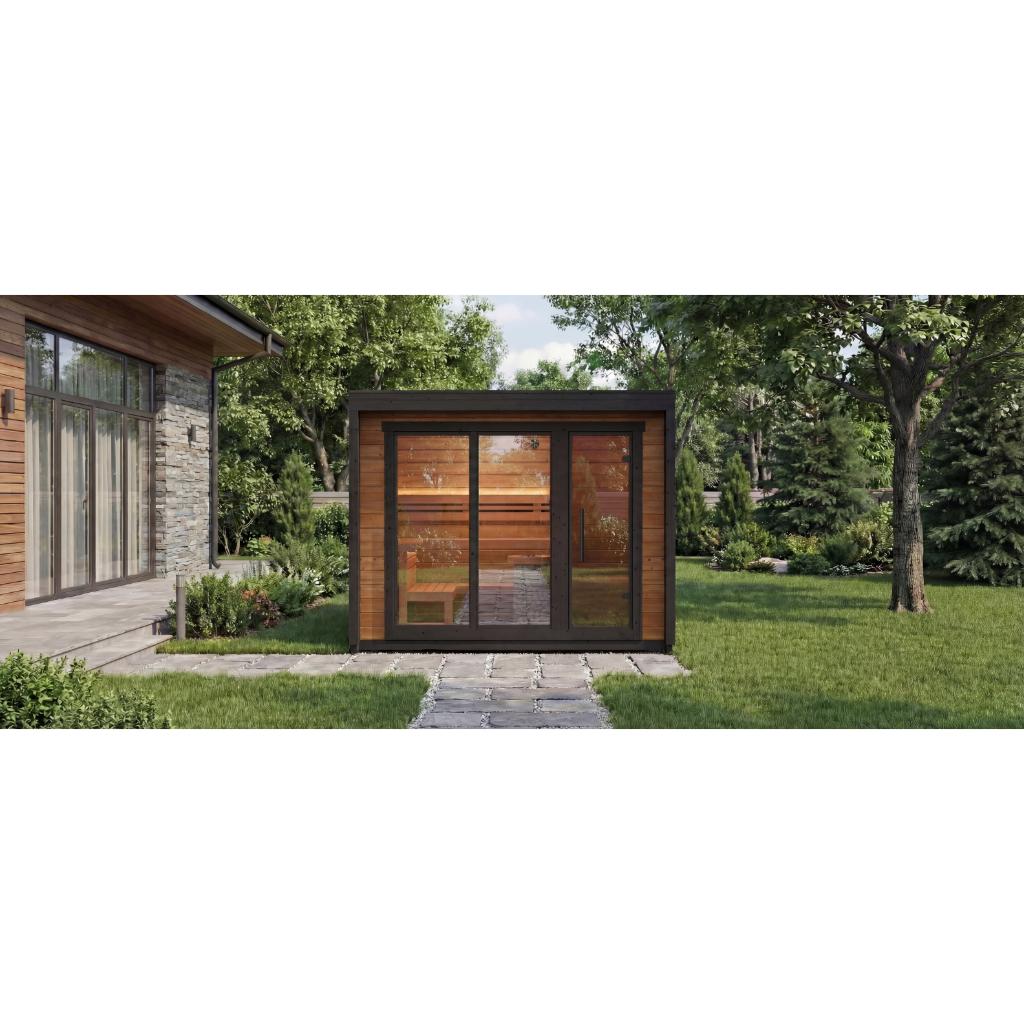

The Leil Patio M 5-Person Outdoor Sauna Kit provides you with all the materials needed to build an authentic sauna and front room from the ground up.

ThermoWood Pine staves contain the hot and humid sauna air with ease, using natural heat management properties and an interlocking assembly. This material is perfectly suited for all seasonal weather conditions, standing strong in the face of rain, snow, and sun.

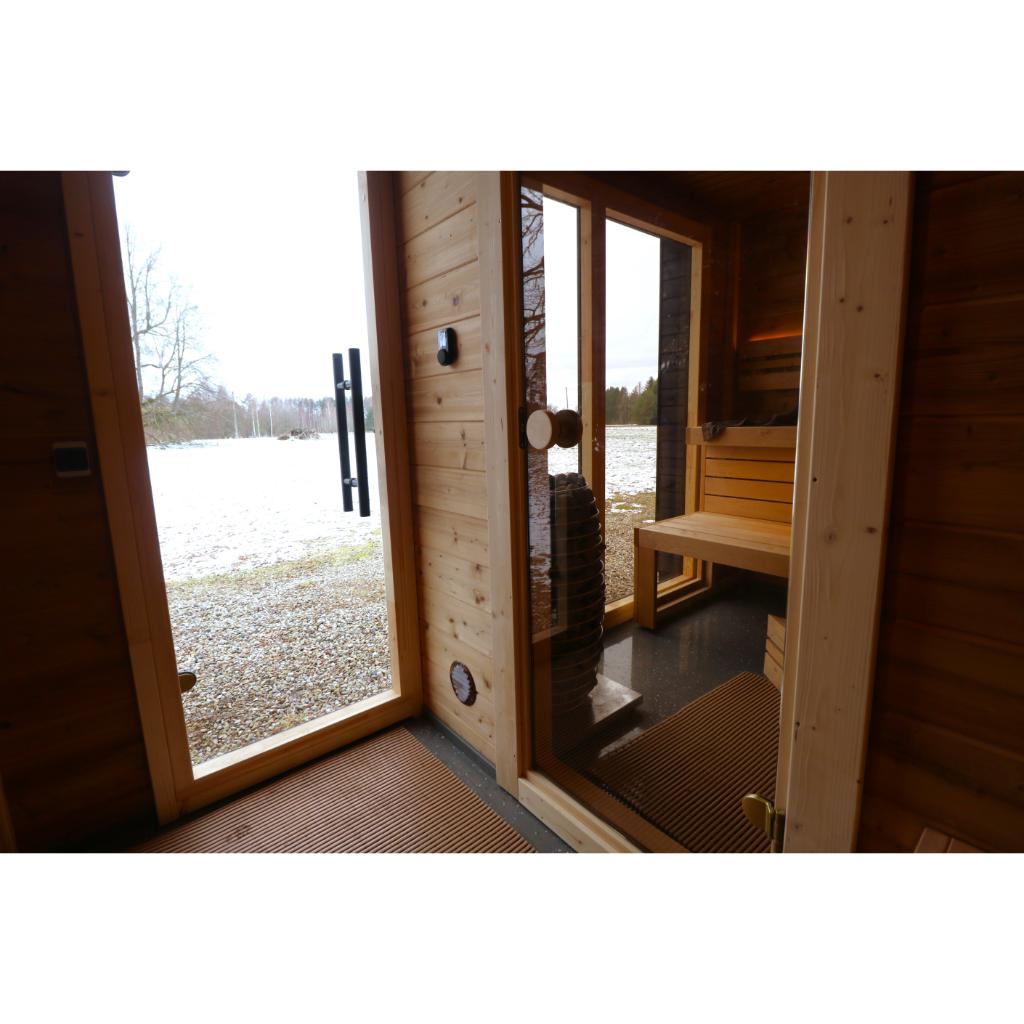

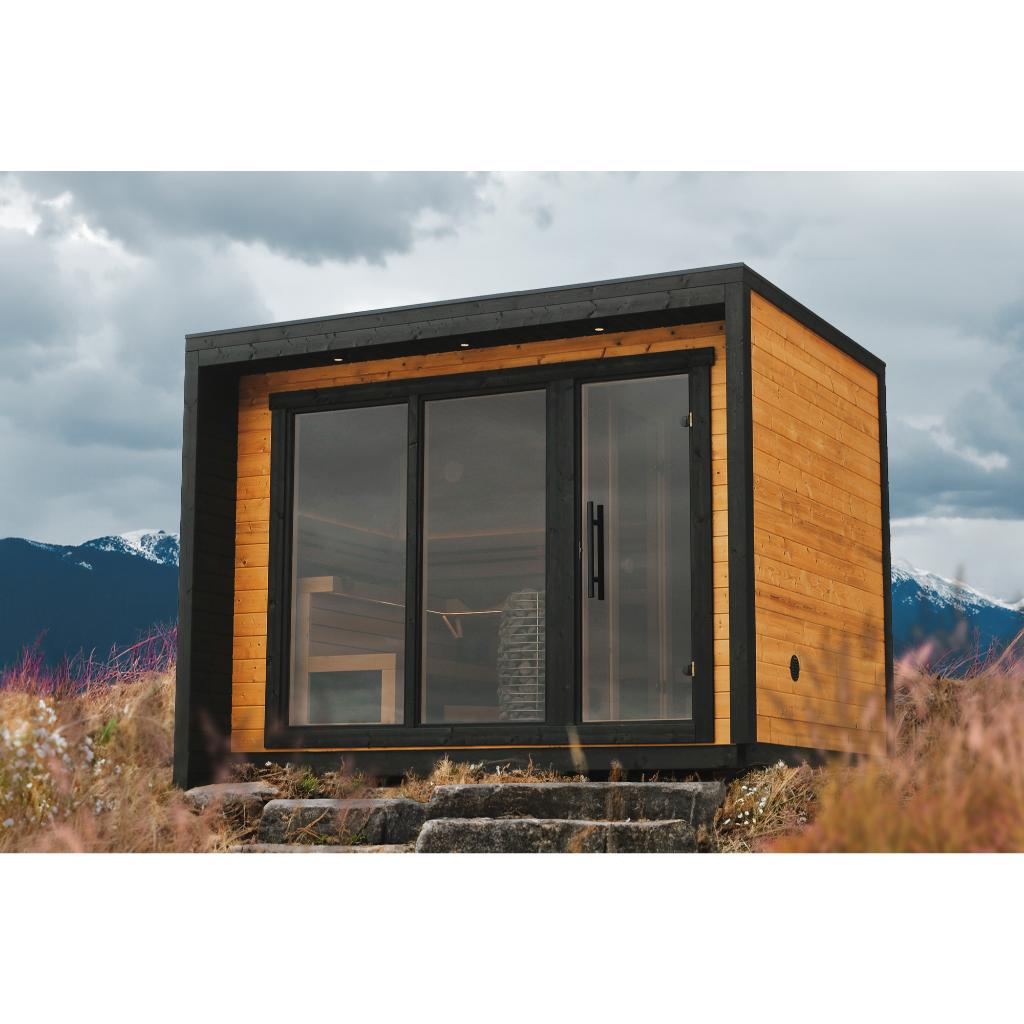

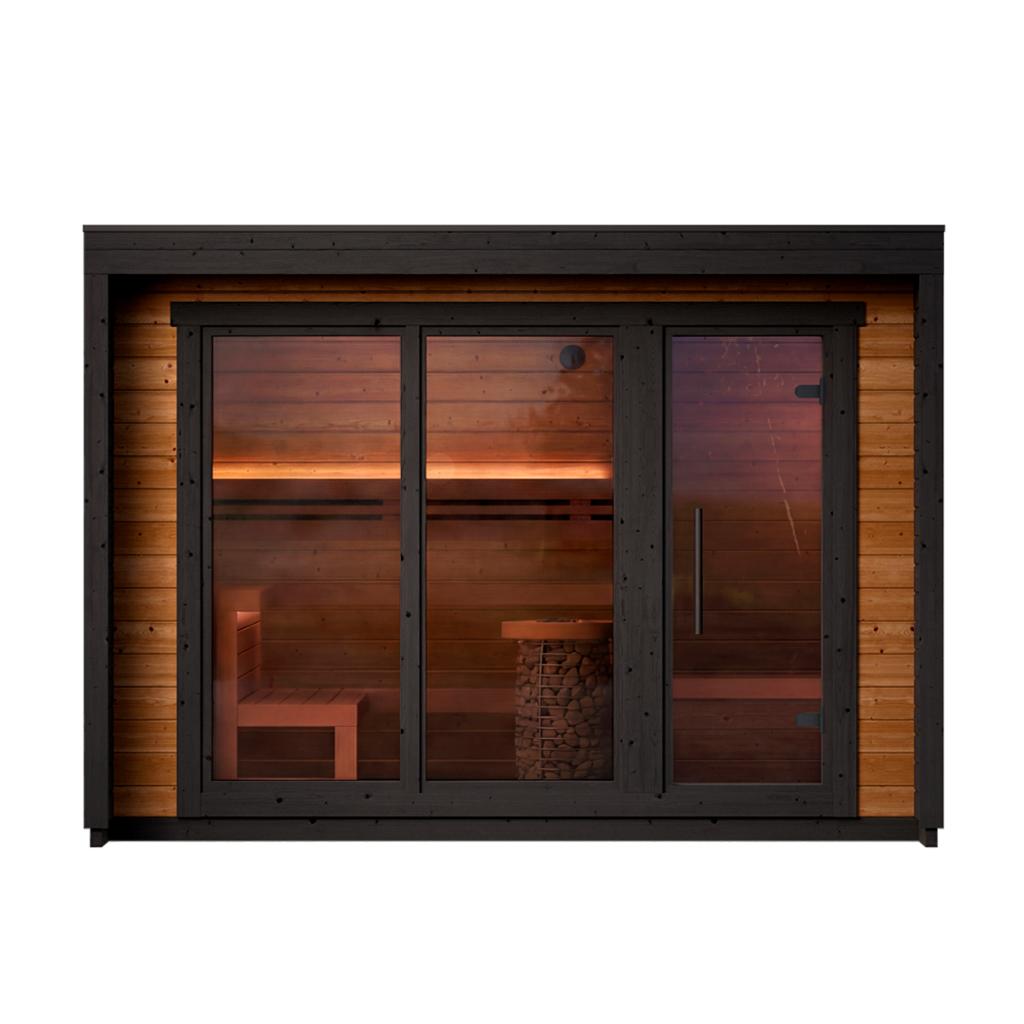

The cabin wood’s dark tone works with the tempered glass door and massive dual-pane bronze tempered-glass windows to create bold style. These glass elements are available in your choice of a black or bronze tint, softening the natural light for a hypnotic ambience.

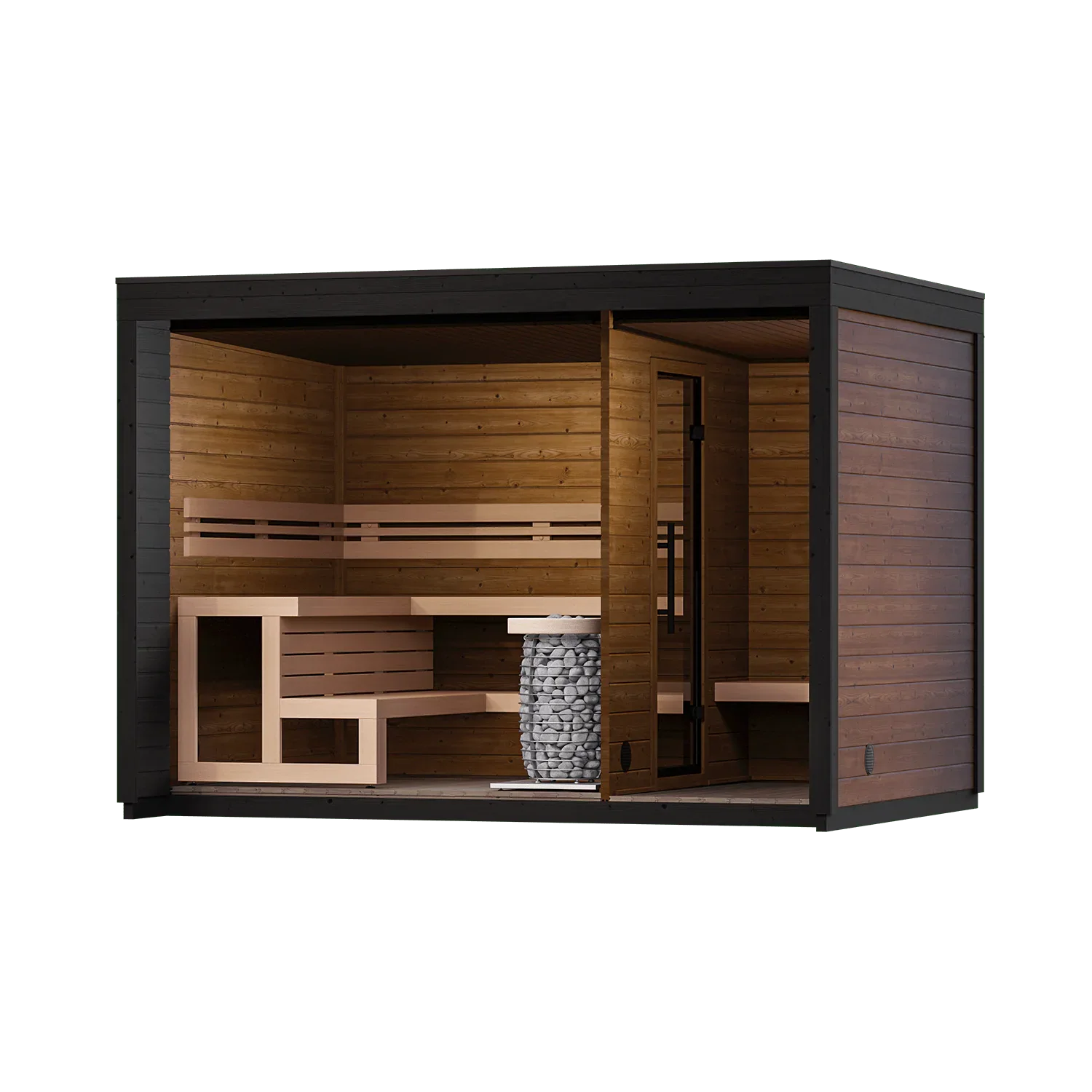

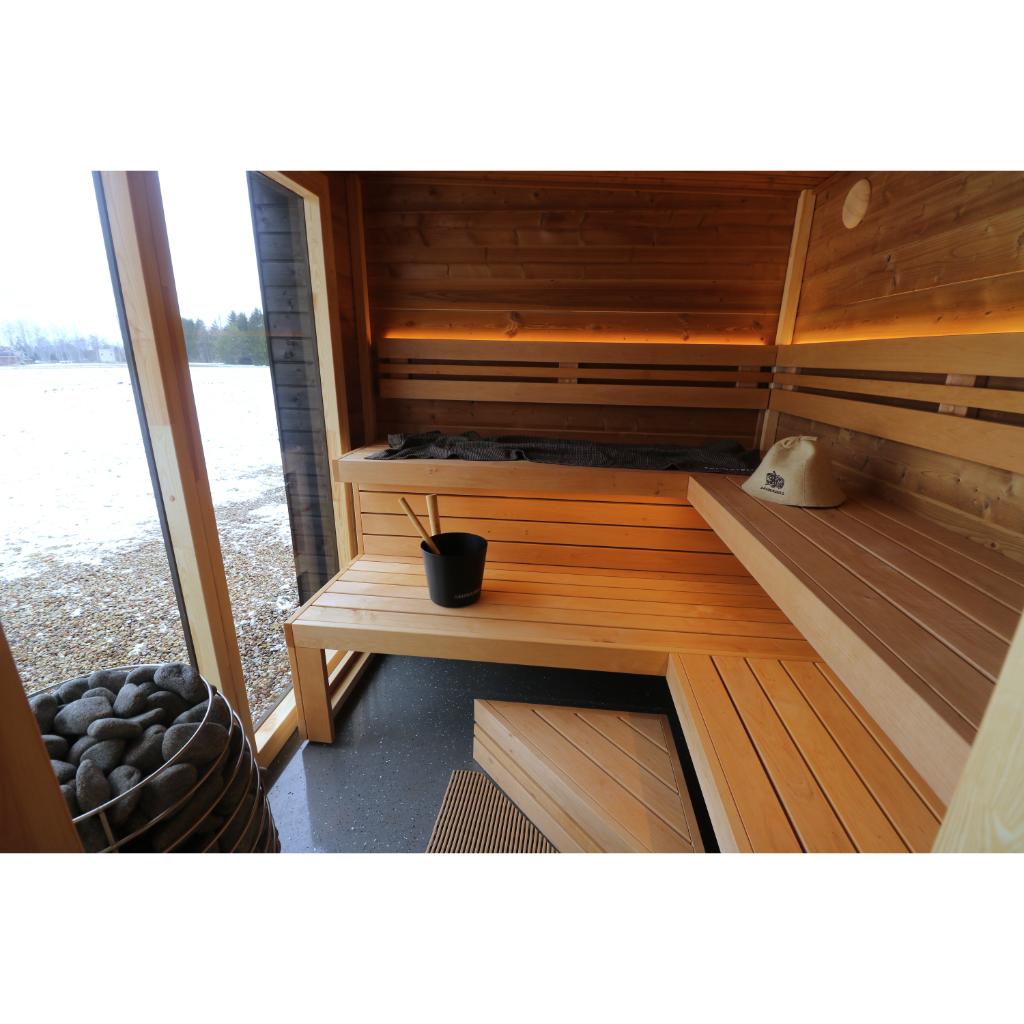

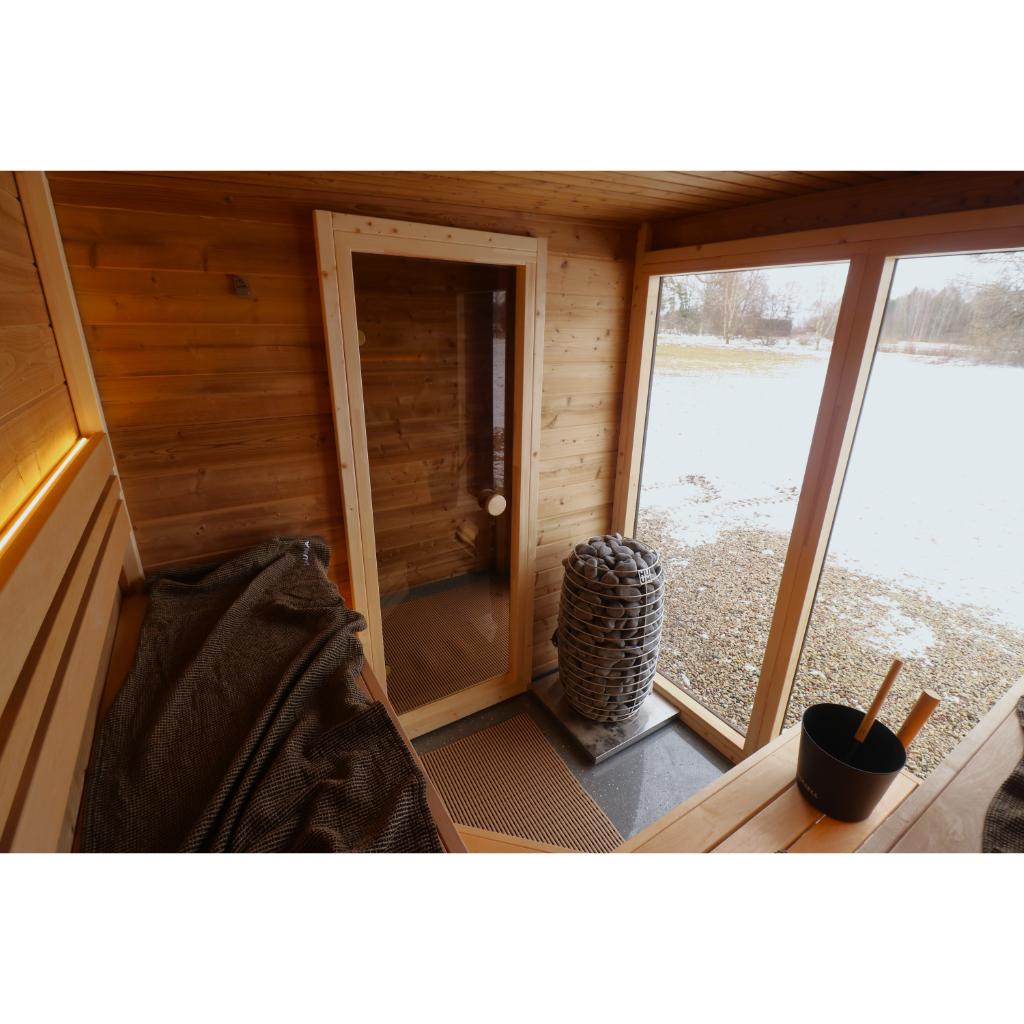

Built to support up to five bathers, this sauna features a soft Alder L-bench to encourage a shared experience between family and friends. Paired with a supportive backrest, you and your guests can sink comfortably into restful relaxation.

The Patio M welcomes both electric and wood-burning stoves, giving you the freedom to build a tailor-made sauna experience. This complete kit is finished with an integrated ventilation system and optional LED lighting to deliver a soothing ambient glow.

ATTENTION: This kit does NOT include a Sauna Heater Package. You can find packages with these items in the Suitable Sauna Heaters menu above.

Assembly

Assembly & Installation

The Leil Patio M Sauna requires assembly and finishing. In addition to this kit, you will need:

• A stable, level foundation - A concrete foundation works best.
• Heater Package - Pick up a complete heater kit to finish your build. This sauna can support electric or wood-burning heaters (not included).
• Certified Electrician - You will need a certified electrician to help with the wiring for the sauna heater, controller, lighting, and any other wired accessories.
• Building Permits - Check with your local building department for any building permits and safety requirements needed before construction.

What’s Included

Contents

• 40mm ThermoWood Pine Staves
• 24mm Pine Roof Boards
• ThermoPine STS Ceiling Panels
• 24mm Spruce Floor Boards
• Metal Floor Gutter
• 30mm PIR Ceiling Insulation
• Black EPDM Roof Cover
• 8mm Tempered-Glass Door
• 8mm Dual-Pane Tempered-Glass Front Windows
• 2-Level Alder L-Bench
• Bench Skirt
• Backrest
• Black Decorative Mouldings
• Vents

Optional

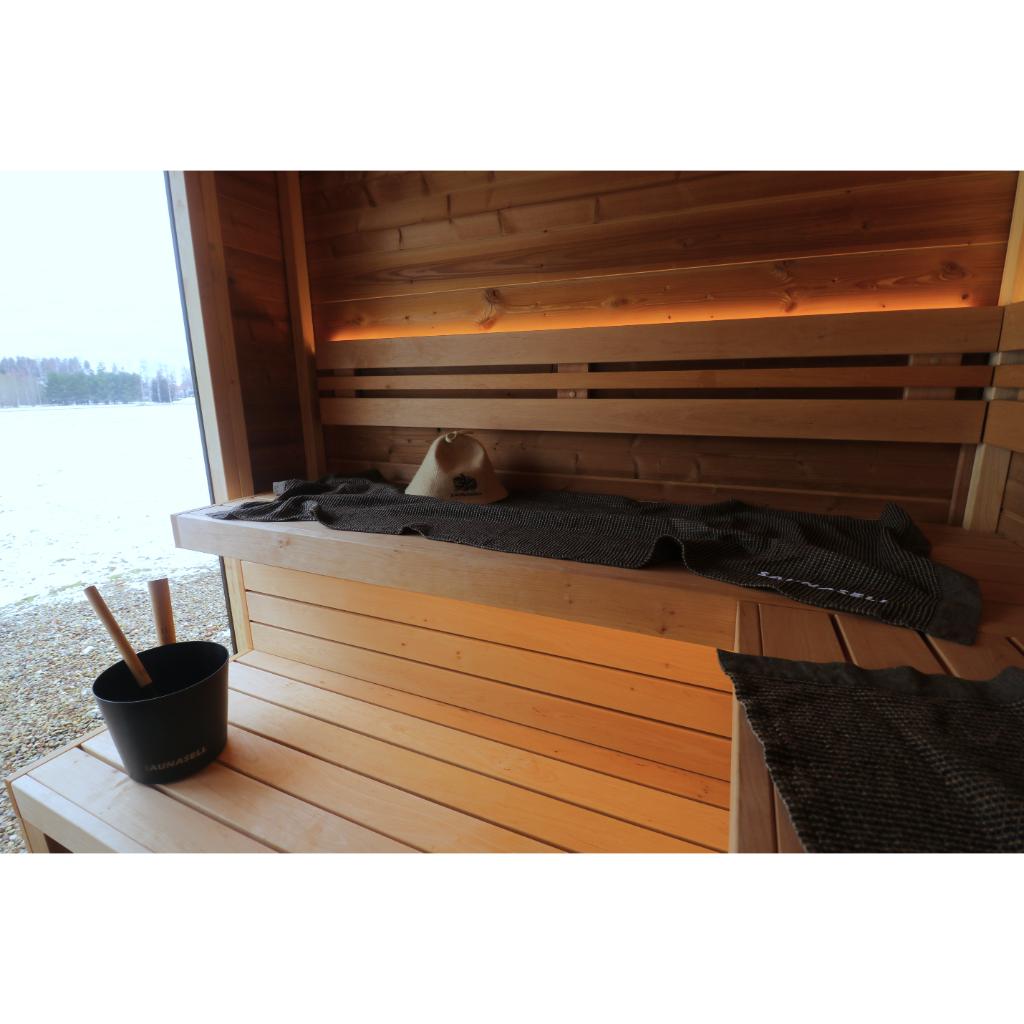

• LED Bench Light Strips
• LED Backrest Light Strips
• External Spot Lighting

Not Included

• Heater
• Stones
• Controller

ATTENTION: This kit does NOT include a Sauna Heater Package. Check out the Heater Packages under Suitable Sauna Heaters to complete your build.

Specifications

Model	Leil Patio M
Capacity	5 People
Heater Type Compatibility	Electric: Yes Wood-Burning: Yes
Interior Dimensions	6.8’ W x 6.3’ D x 6.6’ H
Interior Volume	282.7 ft3
Bench Material	Alder

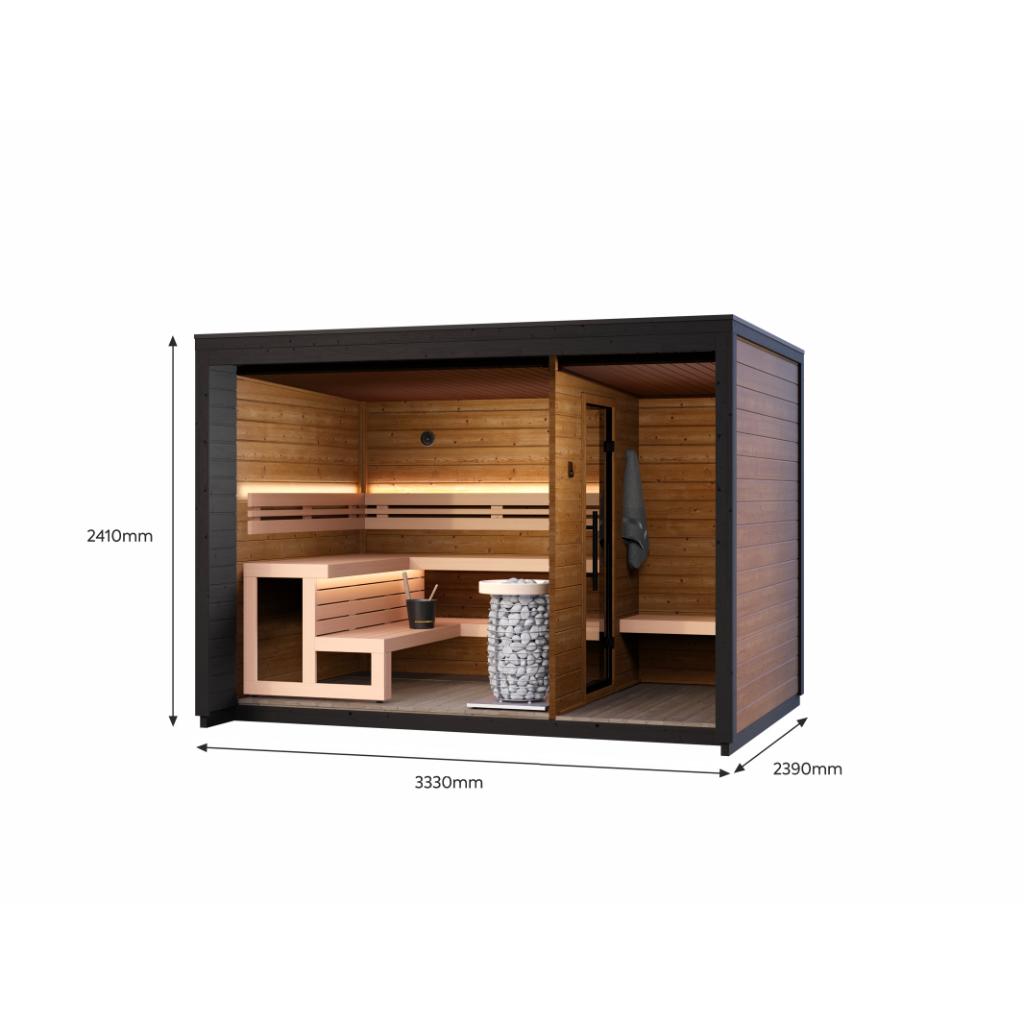

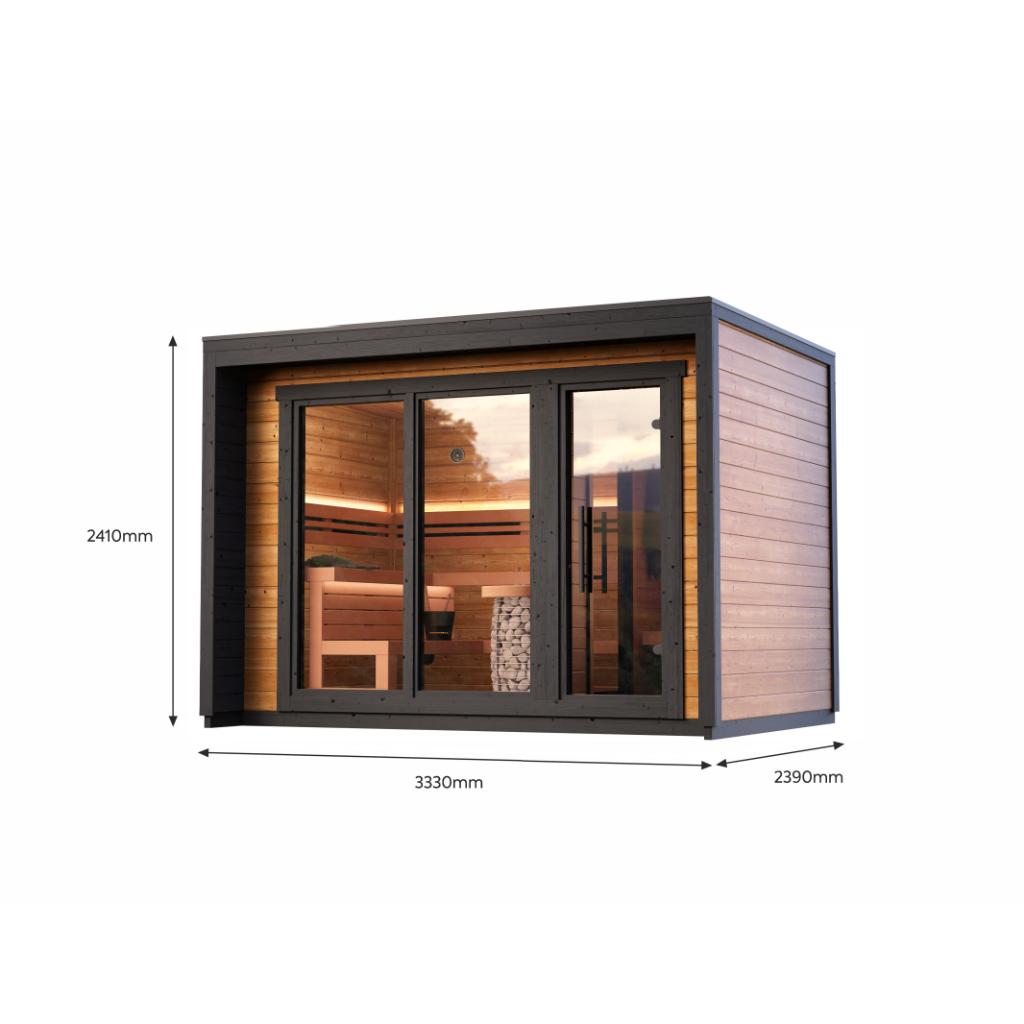

Exterior Dimensions	11’ W x 7.8’ D x 7.9’ H
Exterior Coverage	85.7 ft2
Wall Material	ThermoWood Pine
Wall Thickness	1.6”
Glass Type	Double 8mm Tempered Glass
Glass Dimensions	10.1’ W x 6.1’ H
Roof Type	EPDM Rubber
Sauna Kit Weight	2822 lbs.



Manuals

Manuals

• Construction & Installation Manual
• Patio M Diagram
• Patio M Catalogue

Shipping

Shipping

• Leil Saunas have a flat shipping rate of $1500 for deliveries within the 48 contiguous states.
• These Saunas ship directly from our New York warehouse via flatbed truck.
• Shipping times vary depending on inventory levels and delivery location. If there are any delays in shipping, we will reach out to you directly with the new projected arrival date.
• For a more specific timeframe, contact us.
  • (725) 777-5484
• We offer express shipping options, reach out to us for a quote.

ATTENTION: Shipping and delivery times may increase based on seasons and holidays.

Cancellations & Returns

Cancellations

We will issue a 100% refund on orders canceled within 4 business days. If an order is canceled after this 4-day grace period ends, there will be a 3% cancellation fee. Please reach out to our support team if you need to cancel your order after it has shipped.

Returns

Our saunas include a 30-day return policy.

You can return this product if:

• You initiate your return within 30 days of product delivery date.
• The product is unused and in its original packaging.
• Installation has not been attempted.

If these requirements are met, your return will be accepted. However, you will be responsible for the return shipping cost and a 20% restocking fee. After we receive the return and it has been inspected at our warehouse, we will refund your original payment method in accordance with the policy listed above.
